Simple Coin Operated Control Timer Board

Single Price Totaliser Board

One of our more popular boards, this simple coin operated control PCB is an ideal board for use in basic vending machines. With several modes of operation this may be all you need to get your first vending machine up and running.

Our simple coin operated control board can be used in multiple different configurations for a variety of uses, be it single product vending machines, coin operated timers or payed entry systems. A number of our customers have been using this board for several years precisely due to its reliability, adaptability and simplicity.

Features

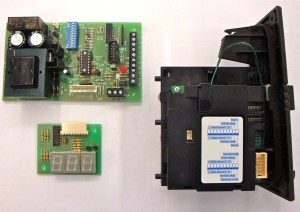

  • Totaliser Components Set
  • Power Supply: 230VAC or 12VDC
  • Relay Rating: 8 Amp
  • Dimensions: 79mm wide, 134mm long, 35mm high.
  • Fixing Holes: 120mm x 64mm.
  • User programable vend price.
  • 3 operating modes: pulse, latched and timed.
  • Can be used with either a mechanical or electronic coin mechanism.
  • Sold-out detection.
  • LED credit display (optional).
  • Vend counter (optional)

Common Uses

Here are some common uses for our coin operated control board:

  • Single price vending machine.
  • Snooker table light timer.
  • Coin operated launderette washing machine timer.
  • Coin operated shower control.
  • Coin operated car park barriers and door access.
  • Coin operated water dispenser.
  • Simple change machine (coins in – change out).
  • Coin operated timed rides and games.

Basic method of operation

The board will add the coins that have been inserted up to the programmed amount. Once that amount has been reached, the board will activate in one of three ways.

Operating Modes

Pulse Mode:

On reaching the required value, the board will pulse the relay. This mode can be used to simulate a button press, in order to activate a equipment with a timed cycle like a massage chair, or to pulse a solenoid on a dispense mechanism.

Latching Mode:

On reaching the required value, the board will activate the relay until it receives a reset signal. This mode could, for example, be be used to run a dispensing motor or operate an electronic door lock for access control .

Timer Mode:

On reaching the required value the relay will activate for a preset amount of time. This is ideal for selling long timed events like the light over a snooker table and children’s rides or short accurate lengths of time as needed for filling a cup full of water.

Please note that this requires a separate software version which must be specified when ordered.

Customised Software

Everyone’s needs are different and even if your needs are not quite what we have described above, we can adapt our software to meet your needs.

Technical Details

Power Supply

The board can be powered from 230VAC or 12VDC making it easy to tap into the power

Relay Output

The output relay can be connected for both normally open or normally closed configuration. The relays contacts are rated to switch up to a maximum of 230VAC and 8 Amps.

Coin Mechanism

The board can use with either a mechanical coin mechanism or an NRI G13.7000 electronic coin validator if you require a more complex system.  It has six different coin inputs for use with coins and/or tokens of any currency. The G13.7000 can be supplied programmed for any currency or tokens on request (standard g13 supplied programmed for the following 6 coins 5p, 10p, 20p, 50p, £1 and £2).

The board also has an input for telling the board to inhibit the coin validator to ensure it rejects any other coins inserted while the input is present. This can be used for wiring a sold-out switch to the board, stopping customers from being insert money after the machine has sold out of product.

User Set Price

The price of the product can be set to any value using switches on the PCB.

Pricing

Main Control Board: £65.00

This board can be purchased on its own, for use with your mechanical coin mech or G13 validator, or with the following additional parts:

3 Digit LED Display Board: £25.00

We can provide a display for these boards which uses red 7 segment LED displays. The display can be used in count up mode (display counts up the value of the coins inserted until vend price is reached) or count down mode (vend price is displayed and counts down as coins are inserted).

300mm cable is supplied to connect to the main board (other lengths available on request).

NRI G13.7000 Coin Validator: £114.00

We can also provide the NRI G13.7000 type coin mechanism for use with this board. This will be set for 5p, 10p, 20p, 50p, £1 and £2 unless another coin set is requested. The validator can also be programmed for tokens if nessesary.

All prices shown are exclusive of VAT. Lower prices are available for higher quantities on request.

Find out more

If you want to find out any more information about our simple coin operated control board, either contact us or ask your question in the comments below.

One Comment about “Simple Coin Operated Control Timer Board”

  1. Hi,

    I am Adzman from Malaysia. I would like to know further about your Simple Coin Operated Control Timer Board. Can this board support note acceptor with pulse signal. Say model note acceptor model BV 20 ( i think this is a UK product too),

    Thanks,

    Adzman.
